Valin New Energy has achieved a major breakthrough in membrane roof PV applications with its independently developed Membrane-Rail Integrated Base. Featuring the core design of “Long Rail + Wide Base” with a 500mm extended size, this product completely subverts the load distribution mode of traditional welded small bases, fundamentally solving the problems of insulation board collapse, sagging water accumulation and roof leakage, providing a safe and durable integrated solution for TPO/PVC membrane roof PV projects.
Innovative Design: 500mm Long Rail + Wide Base Reconstructs Load Distribution Logic
Specially designed for TPO/PVC membrane roofs, Valin’s Membrane-Rail Integrated Base features a 500mm extended rail and wide integrated structure, realizing a revolutionary upgrade in load transmission compared with common 150mm welded small bases.
Core Design Advantages
- 500mm Ultra-long Rail: Greatly increases the contact area with the roof insulation board, effectively distributes the weight of PV modules, snow load and wind load, ensuring linear and uniform load distribution and eliminating local stress concentration.
- Integrated Wide Base: Factory pre-assembled with high structural strength and no weak welding points. Fixed directly on the TPO/PVC membrane by hot-air welding without perforation, preserving the original waterproof structure.
- Extreme Weather Resistance: Excellent performance in resisting snow load and wind uplift, with stable operation in typhoon-prone areas.
Industry Pain Points: Defects of Traditional Welded Small Bases
The 150mm welded small bases widely used in the market have unavoidable defects:

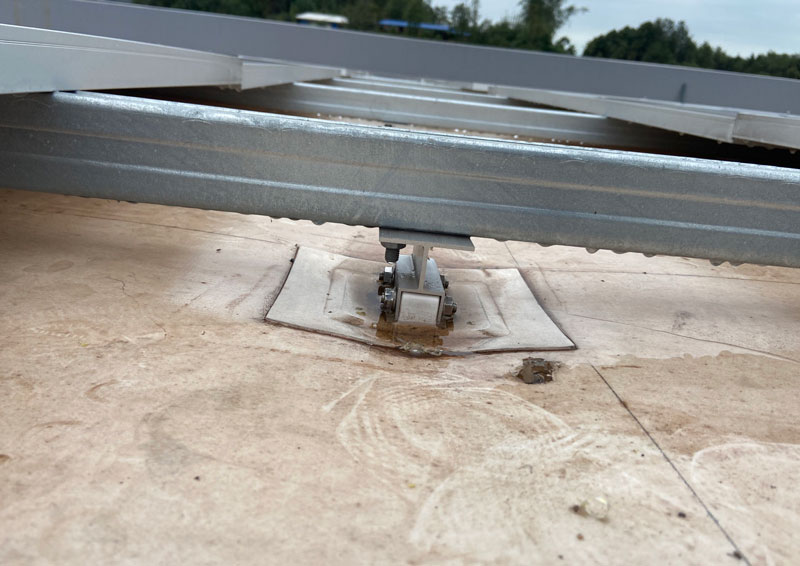

- Severe stress concentration easily crushes roof insulation boards and causes roof sagging;
- Sagging leads to water accumulation, accelerating membrane aging and lap tearing, resulting in roof leakage;
- The on-site welding process is unstable, and the weld seam is prone to rusting and cracking, and it may fall off after long-term use;
- Uneven load distribution increases risks under heavy snow and typhoon conditions.
Comparison: Valin Integrated Base VS Traditional Small Base
| Items | Valin Membrane-Rail Base (500mm) | Traditional Welded Base (≈150mm) |
|---|---|---|
| Structure | 500mm long rail + wide base, large contact area | 150mm short base, small contact area |
| Load Distribution | Linear & uniform, high efficiency | Local stress concentration, easy to crush panels |
| Roof Impact | No sag, no water accumulation, protects roof structure | Prone to sagging & leakage |
| Structural Strength | Factory-integrated molding, high-strength aluminum alloy | TPO particle injection molding, with a short upper connecting guide rail, is not conducive to component position adjustment |
| Waterproof | No perforation, 100% waterproof | High leakage risk |
| Weather Adaptability | Strong typhoon & snow resistance | High risk in extreme weather |
Project Cases: Proven Performance

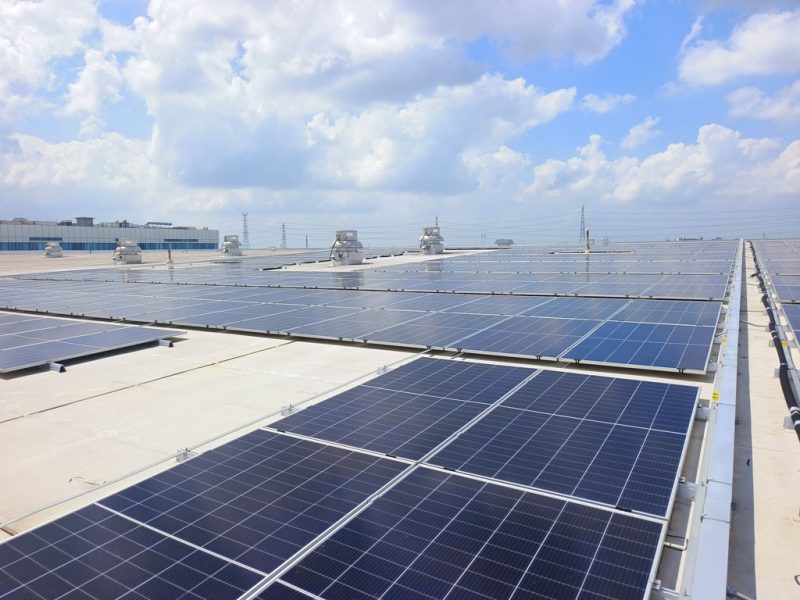

Valin’s Membrane-Rail Integrated Base has been successfully applied in many benchmark projects:
- SVolt Energy 35MW PV Project: Stable operation, no roof leakage or sagging.

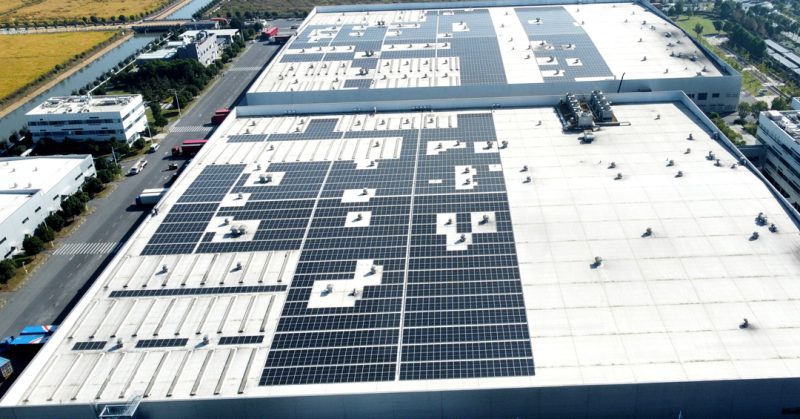

- Shanghai Jahwa 4MW Membrane Roof Project: TPO roof compatible, no damage to waterproof layer.
- Hormann, Van de Velde, Vaillant and other overseas projects: Complies with European high standards and highly recognized by international clients.
-

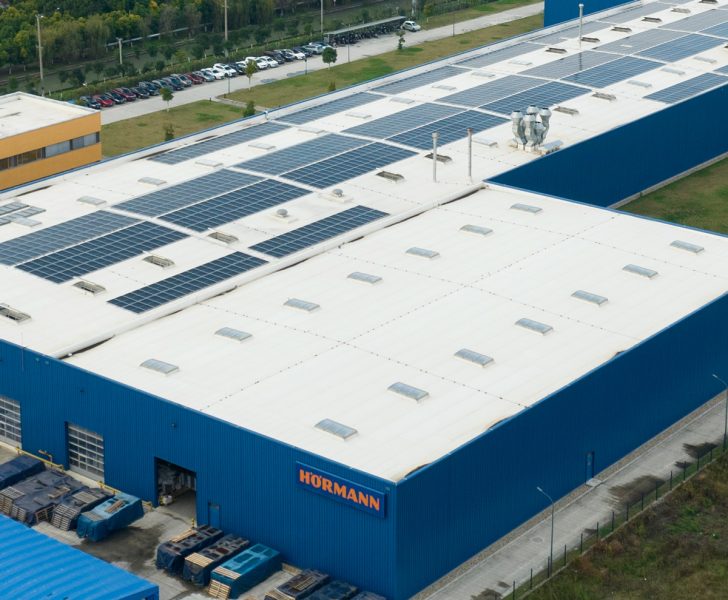

image tit - Hormann-TPO-Roof-Solar-Mounting-system
Industry Value: Setting New Safety Standards
As the first professional PV mounting system for TPO/PVC membrane roofs in China, Valin’s Membrane-Rail Integrated Base fills the industry gap in roof safety. Its innovative “Long Rail + Wide Base” design redefines safety standards and provides a replicable solution for the global industry.
Valin New Energy will continue to focus on membrane roof PV technology, optimize product performance, and support the safe, efficient and sustainable development of commercial and industrial roof PV power stations worldwide.
